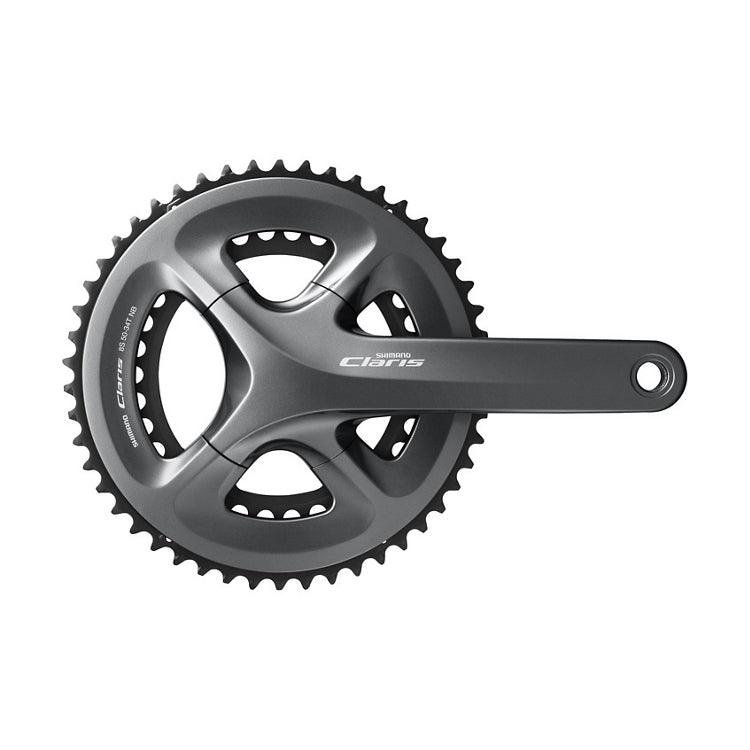

The Shimano Claris FC-R2000 is a 2×8-speed crankset in stylish black 2-piece design. Compatible with 2×8-speed systems. Version with 50-34 teeth and chain guard.
Bottom bracket is not included!
Feature
- Clean and stylish appearance
- Cascaded design image taken from high-end models
- High-end 4-arm FC design
Technology
Hyperglide
The distinctively designed HYPERGLIDE sprockets incorporate specially positioned shift ramps and tooth profiles for improved chain control during shifting. Fast and responsive indexed shifting is the result.?
The HG cassette sprocket, which was developed for the MTB 10-speed system, underwent comprehensive optimization to achieve super-highly efficient shifting.
HG sprockets
Guide the chain quickly and directly to the next sprocket without override.
Conventional sprockets
Cause the chain to ride up and over the gear teeth before engaging the sprocket.
2-piece crank set
- Integrated crank arm and bottom bracket
- Increased rigidity with less weight
- Wider bearing positioning
- Rigidity is enhanced and pedaling force is efficiently transmitted
- Precision Bearings
- Low maintenance and simplified installation
Specifications
| Rear speeds | 8 | ||
|---|---|---|---|
| Compatible chain | HG 8-speed | ||
| Chainline (mm) | 43.5 | ||
| P.C.D. left / right (mm) | 110 | ||
| Gear arms (pcs) | 4 | ||
| Chainring combination | 50-34T | ||
| Q-factor | 150 | ||
| Crank arm length (mm) | 160 | – | |
| 165 | x | ||
| 167.5 | – | ||
| 170 | x | ||
| 172.5 | – | ||
| 175 | x | ||
| 177.5 | – | ||
| 180 | – | ||
| Optional chain guard | With chain guard | – | |
| Without chain guard | X | ||
| HOLLOWTECH II | – | ||
| 2-PIECE CRANKSET | X | ||
| HOLLOWTECH crank arm | – | ||
| OCTALINK | – | ||
| HOLLOWGLIDE | – | ||
| Compatible BB type | Outboard | X | |
| OCTALINK | – | ||
| Square | – | ||
| Recommended BB | Threaded (normal) | BB-RS500 | |
| Pressfit | BB-RS500-PB | ||
| Axle length of BB-UN / ES (mm) | Threaded (normal) | – | |
| Threaded BB shell width (mm) | 68 | X | |
| 70 | X | ||
| Crank arm | Material | Aluminum | |
| Finish | Painted | ||
| Crank axle | Material | Steel | |
| Finish | Plated | ||
| Outer ring | Material | Steel/Resin | |
| Finish | Painted | ||
| Inner ring | Material | Steel | |
| Finish | Painted | ||
| Outer / middle ring fixing bolt | Material | SUS | |
| Inner ring fixing bolt | Material | SUS | |
| Crank fixing bolt included | X | ||
Additional Info
- Country of Origin: Malaysia/Japan
- Imported By: Shimano South Asia Pvt Ltd. , 19 , (Ground Floor) Kumara Krupa Road , Bangalore ? 560 001 , Karnataka , India.
- Net Quantity: 1N
- Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore – 560041. Ph: (080)47183232, Email: support@bumsonthesaddle.com
- Commodity: Cranksets
