The Shimano Tiagra 4700 Groupset offers balanced performance and consistency; the updated range – which now supports internal cable routing – remains dependable and durable, requiring little maintenance.
Shimano’s Tiagra 4700 sets a new quality benchmark for entry-level groupsets. Utilizing technology from their higher-end groupsets like Dura-Ace, Ultegra, and 105, has allowed Shimano to bring this quality groupset to grassroots cyclists.

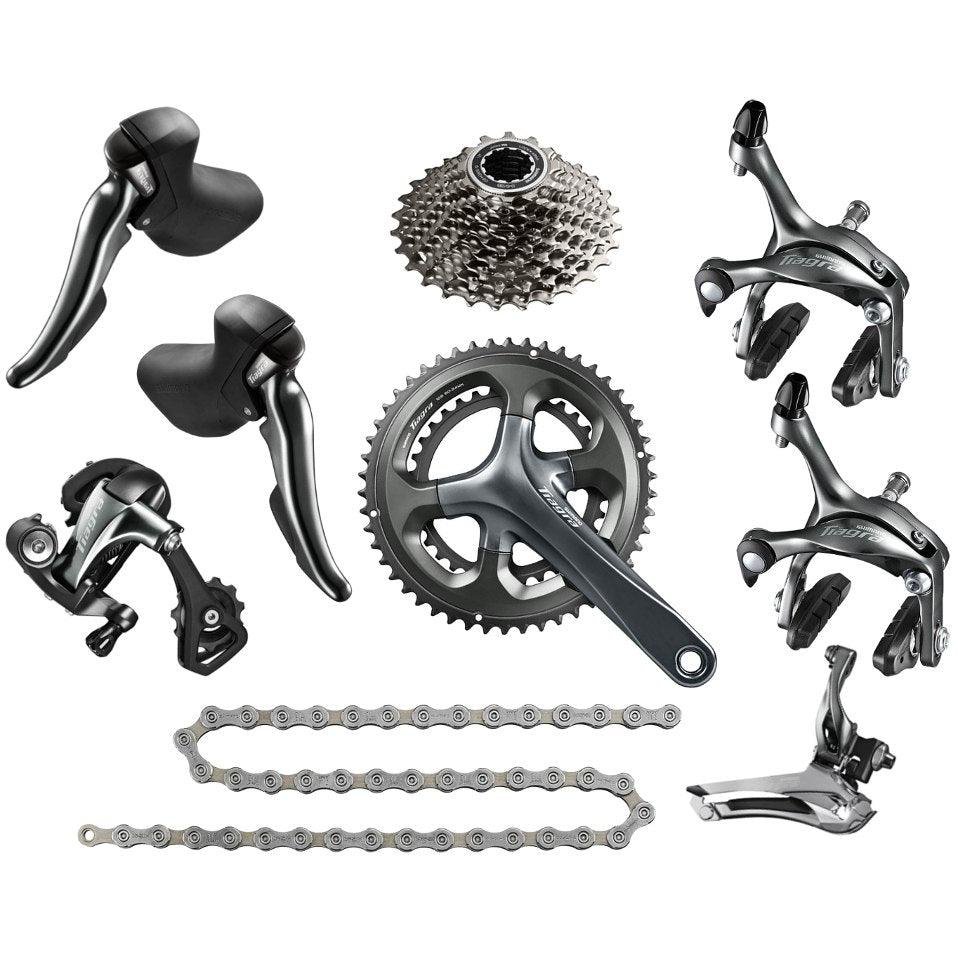

The groupset consists of:
- RD-4700-GS Rear Derailleur 10-speed medium
- FC-4700 Crankset 2×10-speed
- FD-4700 Front Derailleur 2×10
- CS-HG500-10 Cassette 10-speed
- CN-HG54 Chain 10-speed
- BR-4700 Brakes FW + RW
- ST-4700 STI Dual Control Shift-Brake Levers 2×10-speed

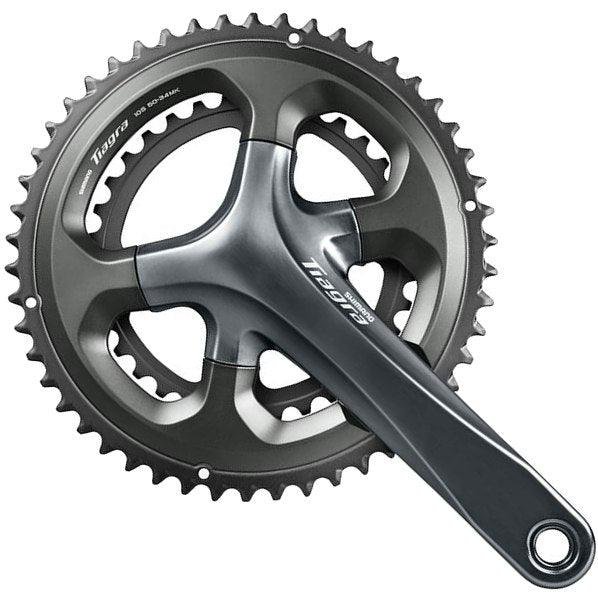

Shimano Tiagra 4700 Crankset Reliability
The iconic four-arm crank design has a standard pitch circle (bolt circle) diameter of 110mm both chainring combinations are interchangeable because they fit on the same crankset.

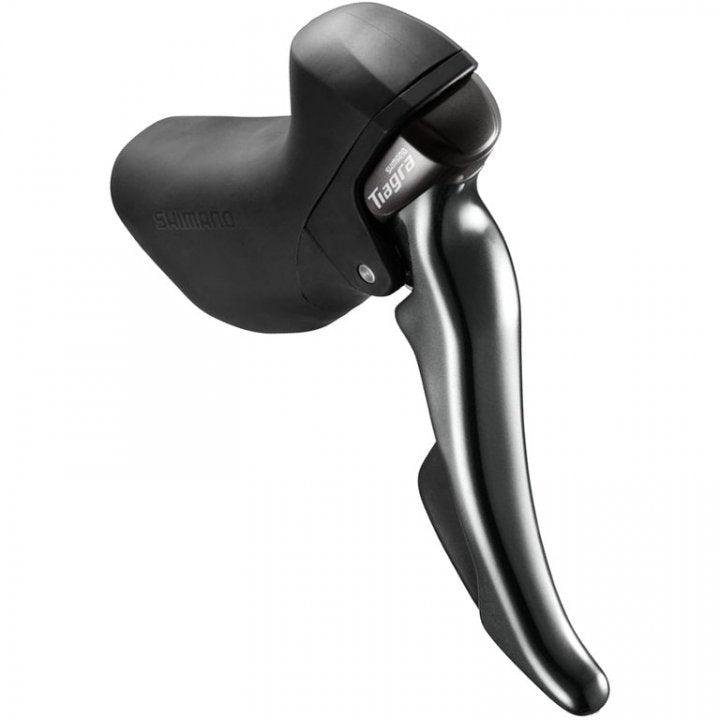

Dual Control Shifters
Tiagra 4700 runs on a 10-speed drivetrain operated by improved ergonomic shift/brake levers (STI). The slim and compact bracket grip offers easy reach to the brake/shift lever from the hood position and a comfortable lever feeling for many riders. Shifting is accurate and virtually effortless.

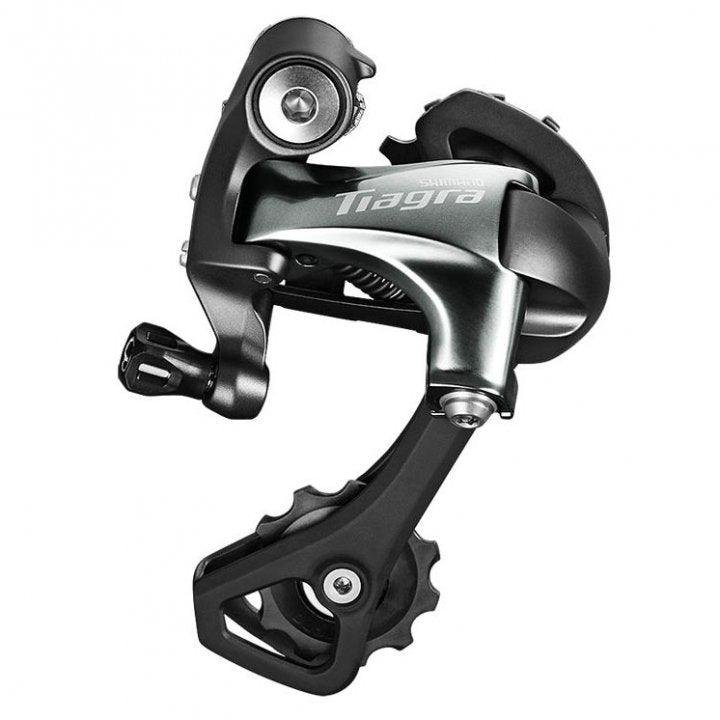

Rear Derailleur
The new rear derailleur has a revised cable pitch, which offers precise and long-lasting shifting performance and is compatible with up to a 34T cassette
Front Derailleur (2 x 10 Speed)
A light action front derailleur with a more ergonomic operation results in less chain drop. A braze-on support bolt improves stability.
Dual-Pivot Brake Caliper
The new Tiagra brake system offers consistent all-around control in all conditions. Compared to the previous generation, the braking power has increased by 30%, while modulation of the brakes has also improved.
HG Cassette Sprocket (10-speed)
Quality 10-speed Shimano Tiagra cassette.
Bottom Bracket
Solid and smooth, the Shimano Tiagra 4700 Bottom Bracket is for use with 2-piece cap-free design road chainsets
Features
Shimano Tiagra 4700 Crankset?Features:
- Cassette compatibility: 10-speed
- Bottom Bracket: BB-RS500/BB-RS500-PB
- Chain Line: 150
Dual Control Shifters Features:
- Cassette compatibility: 10-speed
- Chainset compatibility: Double
- Shift Cable: Lever side: OT-SP41/RD side: OT-SP41 Sealed
- Reach Adjuster: Screw
Rear Derailleur
Rear Derailleur (Short Cage) Features:
- Cassette compatibility: 10-speed
- Maximum Low Sprocket: 28T
- Maximum High Sprocket: 14T
- Minimum Low Sprocket: 25T
- Minimum High Sprocket: 11T
- Maximum Front Difference: 16T
- Total Capacity: 33T
RD-4700 (GS/Medium Cage) Features:
- Cassette compatibility: 10-speed
- Maximum Low Sprocket: 34T
- Maximum High Sprocket: 12T
- Minimum Low Sprocket: 28T
- Minimum High Sprocket: 11T
- Maximum Front Difference: 16T
- Total Capacity: 39T
Front Derailleur (2 x 10-speed) Features:
- Cassette compatibility: 10-speed
- Top Gear Teeth: 53T
- Maximum Capacity: 16T
- Chainstay Angle: 61-66
- Chain Line: 43.5
Dual-Pivot Brake Caliper Features:
- Brake Type: Super SLR Dual Pivot
- Cartridge Shoe Holder: R50T5/R50T4
HG Cassette Sprocket (10-speed) Features:
- Sprocket Ration (11-32T): 11-12-14-16-18-20-22-25-28-32
- Sprocket Ration (11-28T): 12-13-14-15-17-19-21-23-25-28 (12-28T)
- Reliable Chain
- Enjoy the benefits of Shimano’s no-compromise attitude; their use of the best materials offers excellent and reliable performance.
Bottom Bracket Features:
- Threaded BSA
- The minimalist bearing interface gives superbly smooth rolling
- Easy installation
- Weight (Approximate): 72g
Components
- EBR4700A87
- ICNHG54116I
- EFC4700DX04
- IST4700PAC2
- IFD4700F
- IRD4700GS
- ICSHG50010132
Additional Info
- Country of Origin: China
- Imported By: BOTS Cycling Pvt. Ltd , 291 , 10 Main , 5 Block , Jayanagar , Bangalore – 560041 karnataka , India.
- Net Quantity: 1N
- Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore – 560041. Ph: (080)47183232, Email: support@bumsonthesaddle.com
- Commodity: Groupsets
